MINI UV LED

UV Light LED System for Mini-Splits

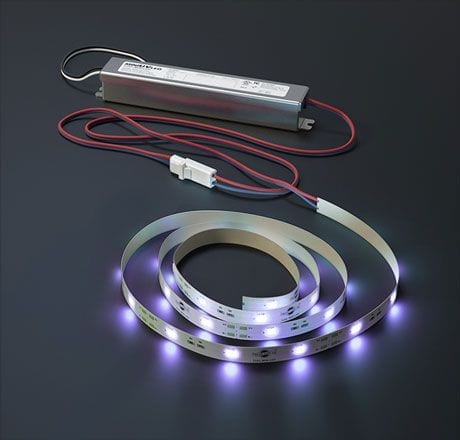

Mini UV LED is the first-of-its-kind UV light LED system for mini-splits and similar limited space applications. Like all A/C systems, mini-splits are prone to internal mold growth and microbial contamination, particularly on and near the blower wheel. The LED light strip in Mini UV LED is designed to sterilize surfaces while having no impact on plastic materials.

MINI UV LED Features

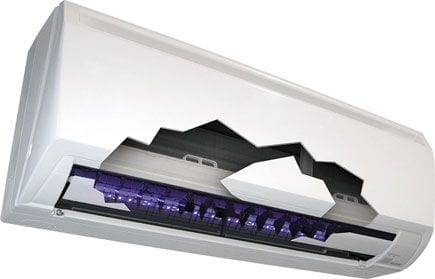

  • Fits mini-split & ceiling cassette A/C systems
  • UV LED spectrum is safe for eyes & plastics
  • Adhesive LED strip is trimmed to length
  • 120-277 VAC power supply
  • 50,000 hour+ expected LED life
  • 5 year warranty on all parts

MINI UV LED Benefits

  • Maintains a clean mini-split system
  • Fights mold on blower wheel
  • Reduces maintenance costs
  • Extends life of mini-split system
  • Improves indoor air quality

FAQ

Is UVC lamp output important?
Output is critical because it determines the effectiveness of the designed solution. To effectively clean coils and eliminate biofilm, a UVC device should provide a minimum of 1,225 µW/cm2 of energy striking any point on the coil face of the HVAC on day one and a minimum of 750 µW/cm2 of energy striking any point on the coil face on day 365.

How do you know when to change the UVC Emitters?
For large or critical applications, change out should be performed after about 9,000 hours or 12 months.

Does it produce ozone?
No. This device does not produce ozone or other secondary contaminants.

How do you dispose of the used UVC Emitters?
Dispose of them as you would any fluorescent tubes, in compliance with your country, local or state codes.

What is the warranty?
The UVC Emitters are warranted for 1 year (9,000 hours).

Can UVC for HVAC contribute to LEED points?
The use of UVC may contribute to LEED points across multiple project types in one or more of the following areas: Energy and Atmosphere, Water Efficiency, Indoor Environmental Quality, Innovation & Design Process and Regional Priorities.
